Xenon Tube™ Multi-Colors App Control
Specification:
Type: Flexible Soft LED Strip Light
Material: ABS+Silicon
LED Type: 2835 SMD
Input Voltage: 12V
Light Color: RGB
Light Length: 60cm (cutability)
Suit For: Universal Car Styling
Package: 2pcs 60cm/24 inches & Installation manual
Features:
- Fast on/off response time
- Dual color white/sequence amber switchback function LED strip
- Soft and easy to make any shapes or length to fit the headlight retrofit
- DRL driving light and turn signal light-work as a daytime running light with white light and work as a turn signal light with following yellow light
- High luminous efficiency with high brightness lighting output, superior illumination, and stability
- Environmental-friendly, energy-saving, shock-proof, waterproof and vibration resistant
- Universal fit for any DC12V vehicles
Tips for your cutting DIY installation:
-
Power off during your customizing installation
-
Make 3-LEDs as a team and cut every 3-LEDs
-
Make sure no debris gets in
-
Sealing the tube with insulated glue after cutting in short，light tubes cannot be folded
Installation:
-
There are 4 cables, YELLOW RED and BLACK
-
the Black connect to the ground line
-
the Yellow connect to turning cable - the led strip shows flowing amber(yellow) light
-
the Red connects to running cable - the led strip shows white light

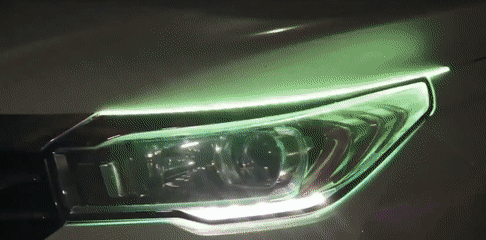

Application:
Angel eye, headlight turning light. LED LAMP

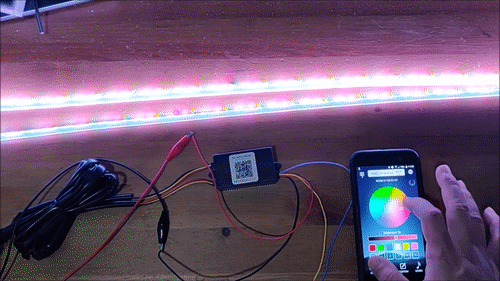

Operation guide
1. Check the lighting is normally power supply.
2. Scan the QR code, download APP, name: LED LAMP. Bluetooth connection to mobile phones, APP will automatically connect to the Bluetooth lamp.
3. enter the APP, click the " +" sign to add a new service, choose the device name: LED DMX.
4. After the addition is complete, click LED DMX to enter the Bluetooth control fixture interface.
5. Finished.
Wire Connection:
Red Wire connects positive, black wire connects negative, yellow, and green wire connects the turn signal on the remote control stripes. The app control stripes you need only to connect the red to positive and back to negative.
Note:
The app control stripes do not have a turn singal light,
The remote control stripes have a turn signal light.
-
➤ Flexible Soft RGB LED Strip Lights. Pure high brightness, highlight seamless, import lights core, quality assurance, heat dissipation quickly, lasting lighting, As running light. As turn signal light.
-
➤ Remote Function; Multi Modes for you to choose.on/off, change color, change flashing pattern, change flashing speed. Brightness color temperature Adjustment-The LED is equipped with a brightness color temperature adjustment mode. Simple design for you a beautiful, exotic, and romantic car.
-
➤Waterproof IP68 Design; The LED strips adopt waterproof buckled plug design with short circuit protection for more safe driving. High luminous efficiency with high brightness light output, Cool clear white light without dark spots, no dead light, superior illumination & stability in rainy or foggy days. Bright at day and night, clearer line of sight when driving
-
➤ EASY INSTALLATION; LED Light strip can be pasted outside or inside headlight assembly easily with adhesive tape. just require right connect to the positive Red Wire (+) and negative Black wire (-), Yellow wire: connecting to turn signal right and left. It can be cut to any size and re-capped, after cutting, the tail must be insulated.
-
➤ The led tube light can be used for car headlight, daytime running light, turn signal light, angel eye light, and so on. Universal fit for all 12V auto vehicle (Pay attention: the working voltage is DC 12V, the higher voltage may cause a short circuit problem, please check the voltage before installing), Warranty; 24 MONTHS FREE REPLACEMENT,⭐NOTE: Any problems, please send e-mail to us at the first time⭐
- Note: The turn signal light for Remote control only.
You can control the light colors using your mobile via an application.
